JAN-APRIL 2023
Kingston School of Art

We designed a tower for Kingston - inspired from Sopwith Camel fuselarge.

rendered 2.png

Sketch model for the tower

fh- 2.png

Design Proposal

Concept development

The concept is based upon the aviation industry in Kingston. One of the famous and most known aircraft plane that was built in Kingston was Sopwith camel by Thomas sopwith which is British  first world war single seat fighter plane. Got inspired by Sopwith fuse large (main body of the aircraft)Our idea is to construct a tower whcih allows people to go inside and give them a sense of being in an aeroplane which has an exhibition space inside. Project ambitions:sopwith camel fuselarge cross bracing wing construction

fh 3-.png

1:20 scale model

Model development

fh 5.png

Constructed tower for an event at Middle Mill

fh drawing.png

Final 1:20 proposed model

sketch model.png

Proposed plan and section

fh plans.png
fh 7 elevations.png

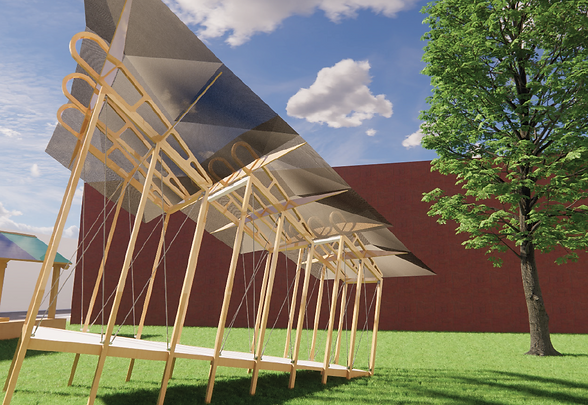

Rendered structure

rendered 2.png
